These are machined aluminum housings and spacers for spherical bearings
All pieces that will replace the factory rubber bushings in a control arm
All pieces needed to replace these factory rubber control arm bushings into free moving spherical bushings
Final result of spherical bearing project
These are wheel scrapers used in rally racing. They help keep debris and buildup out of the inside of the wheels and brakes.
Spark plug bottle opener and the machined steel slug that is welded to the spark plug
Steel 'floating' poster frame
Top of steering rack nut removal tool
Bottom of steering rack nut removal tool
A threaded nut needing removal. With no available tooling, one needed to be made.
Machined aluminum 'pucks' designed to protect bolt heads used to fasten skid plates
Machined aluminum 'puck' before welding
Fully welded aluminum skid plate that will protect the underside of a car from radiator to transmission
In the world of off road racing an exhaust is considered a consumable part. Extra time is spent on fitment to keep as much as possible out of harms way.
Fit up of an exhaust pipe.
Aluminum skid plates built to protect wide fenders from damage
The dash for a bespoke wiring harness retrofit into the factory console
Radiator modification for a engine swap
Laser cut and welded 'smokeless' fire pit
Welding rear axle housings. A solid bar and machined aluminum bushings were used to keep the tubes straight.
Bespoke rear subframe for motorsport differential and control arms

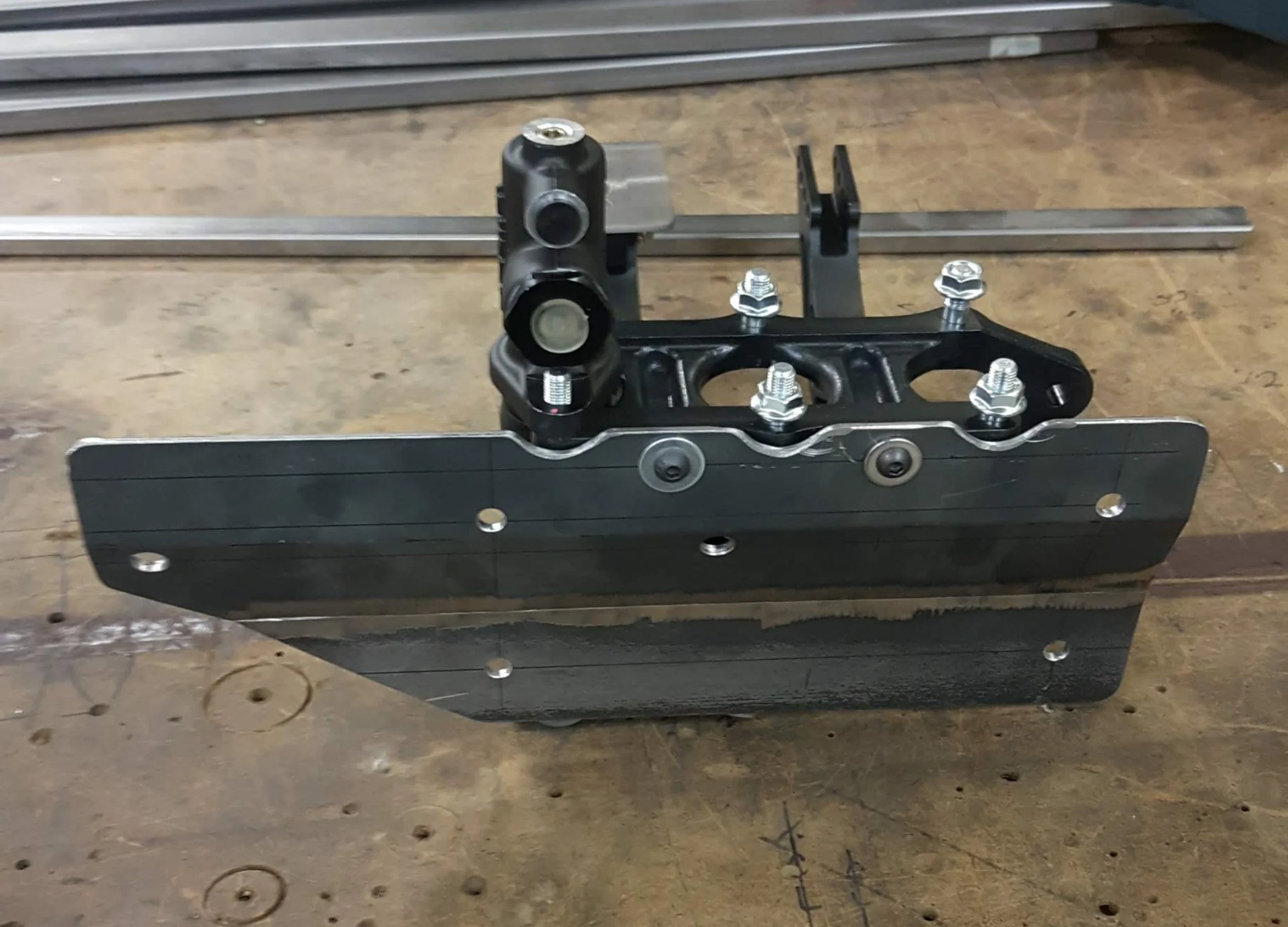

Hanging pedal mount adapting an aftermarket pedal box to a factory chassis.
Another view of the hanging pedal box mounting plate.
Replacement sheet metal to accommodate new fuel cells and drivetrain.
Inner workings of a sequential transmission conversion.
Custom transmission subframe mount.
Transmission subframe mount.
Custom ducting for air intake
Custom ducting for air intake
Aluminum air box
Pedal box mount and foot rest.
Safety wire! Some bolts do not often need to come off. By using the wire in the correct configuration, you can keep 2 or more bolts from being able to back out if they should want to.
Disassembled damper parts for inspection
Damper rebuild process
Damper rebuild process
Damper rebuild process
Damper rebuild process
Freshly rebuilt dampers
Machined aluminum brackets for holding a mirror onto a welded wire frame.
Brake line plumbing for a sliding pedal box.
Patina on steel
Framework for a high top table.
Fabricating a deeper oil sump for an application that has little aftermarket support.
Making these candle was a fun project that made great gifts and great use of empty bottles!
Proprietary picture frame design. Another inspiration that started as a gift idea.
Remote mount battery box for a lightweight lithium battery
Cold rolled steel patina
Center console PDM keypad mount
A specially fabricated aluminum gate latch
The beginning of a roll cage
Machined aluminum towel bar
These steel pieces are used to attach a subframe to a chassis. The cups are welded to the frame and help ensure the subframe finds itself in the same place every installation.
